Askı Yakma Tesisleri
(photos in the offer may differ from the delivered equipment)

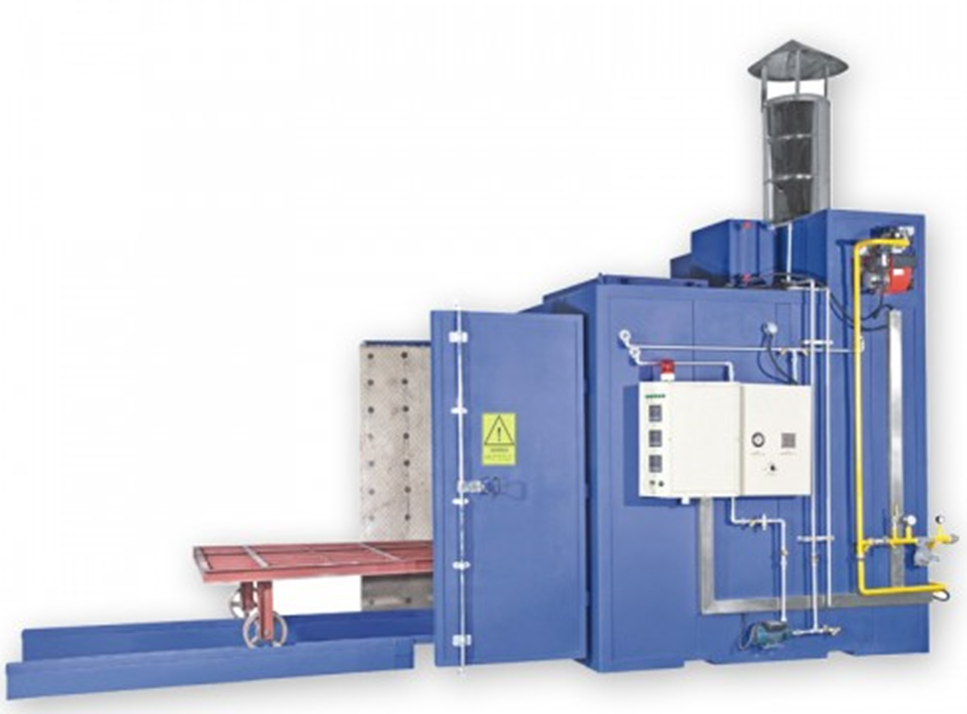

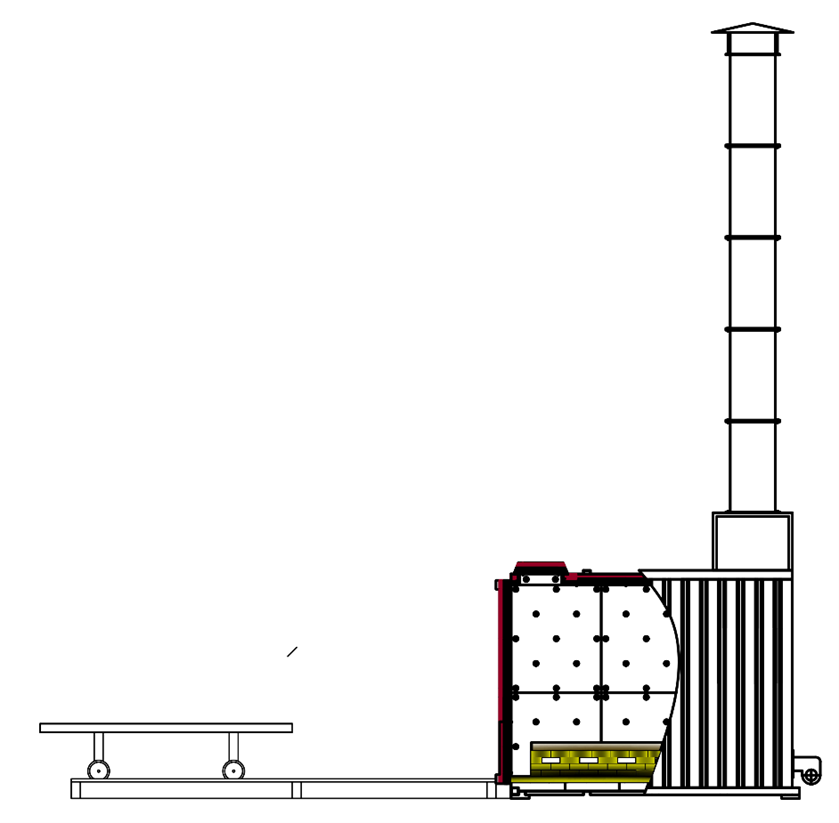

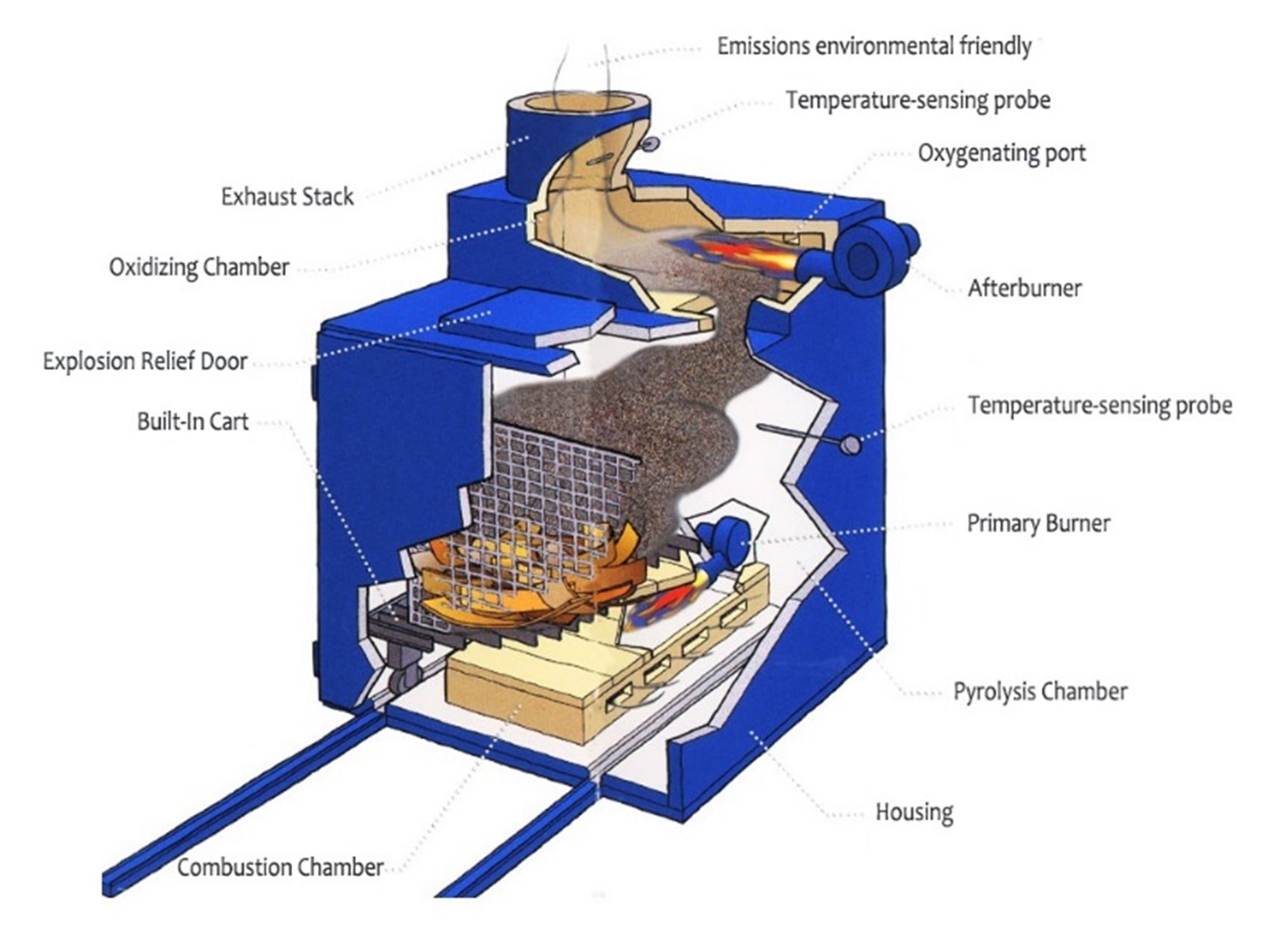

The oven consists of two main sections, the product you want to burn is burned in the section below. In the upper part, the gases released during combustion are combusted.The system works with the PLC in a controlled manner without any errors.

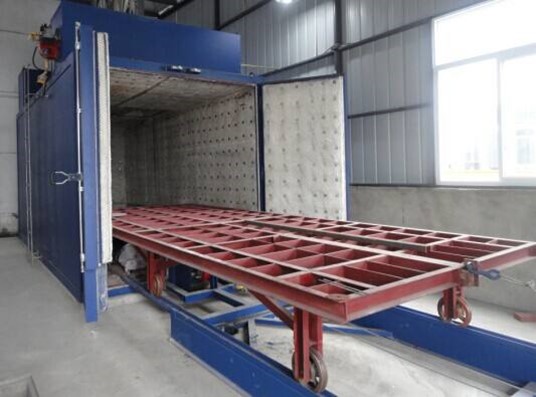

Painted product enters to oven on the special designed high temperature resistant car. The system gradually raises the temperature to 600 C by PLC and turns it into ashes without open flameWith the help of the programs we create for your various products, you will be able to achieve optimal times and fuel consumption. With a water spray system in the system, we automatically eliminate the risk of any flame . Gas or Fuel Oil burner is used according to the conditions in your factory . The gases leaving this section enter the second section at the top of our furnace, where the gases leaving the combustion section. Here the gases burn up to 1100 ° C through a second burner and are discharged without harm to the environment..
| CODE | INNER DIMENSIONS (MM) DEPTH | INNER DIMENSIONS (MM) WIDTH | INNER DIMENSIONS (MM) HEIGHT |
|---|---|---|---|
| MODEL 1 | 1 500 | 1 400 | 1 870 |
| MODEL 2 | 2 000 | 1 600 | 2 000 |
| MODEL 3 | 2 000 | 1 800 | 2 200 |
| MODEL 4 | 2 500 | 1 800 | 2 200 |
| MODEL 5 | 3 000 | 1 800 | 2 200 |
| MODEL 6 | 3 500 | 1 800 | 2 200 |
CONTROL PANEL : (PLC)
The burning process is controlled from a single control panel. PLC Supports English, Russian, Turkish languages . The PLC panel will have a main hand type switch, a digital thermostat, an emergency stop button and an audible oven warning.
